Name: Worcester Bosch Greenstar Classic CDI
Price: 1999.00 GBP
Availability: InStock

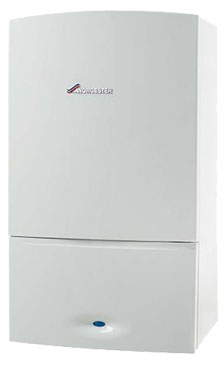

Worcester Bosch Greenstar Classic CDI

FROM: £1,999.00 inc. Parts & Labour

Output

29KW
34KW
38 KW

The Worcester CDi Classic combination boiler is already one of the UK’s most popular combi boilers, especially in larger properties (over 3 bedrooms and 2 bathrooms) where there is a high demand for hot water.

You can control both the hot water and central heating temperatures with ease and with the widest choice of operating features within our gas boiler range, the The Worcester CDi Classic really does provide the ultimate in user convenience, performance and economy.

The Worcester CDi Classic combi boilers are unique in that they condense in both heating and hot water modes, resulting in greater efficiency and fuel savings.

Sedbuk2_0 best_buy_combi_boiler_2013

Features and Benefits

5 Year Parts and Labour Warranty
Best boiler efficiency rating (SEDBUK band A)
Fully condensing in both central heating and domestic hot water modes
Keep hot facility - instantly available hot water
SEDBUK band ‘A‘ rated
Wall mounting frame allows pipework to be hidden from view
Low NOx and CO2 emissions - environmentally friendly
This boiler is registered with the Energy Saving Trust
Hot water and central heating temperatures can be controlled
Multi-directional fluing means boiler can be sited in a wider variety of places
Mechanical, digital and new generation intelligent controls all compatible
Heat load and flow generated precisely to meet the heating system’s requirements using a modulating pump

Technical Information

Worcester Bosch Greenstar Classic CDI Combi Boiler	UNIT	38kW	42kW
Domestic Hot Water
Min. heat input	kW	9.8	9.8
Max. rated heat output	kW	40.0	42.0
Max. rated heat input	kW	40.0	42.0
Max. mains inlet pressure	bar	10	10
Min. mains inlet pressure (working) for max flow	bar	1.7	1.9
Min. mains inlet pressure (working) for operation	bar	0.2	0.2
DHW temperature range	°C	40-60	40-60
*Maximum DHW flow rate - 40°C rise ± 15%	l/min	14	15
Central Heating
Maximum rated heat input	kW	30.9	30.9
Maximum rated heat output 40/30 °C	kW	32.1	32.1
Maximum rated heat output 50/30 °C	kW	31.8	31.8
Maximum rated heat output 80/60 °C	kW	30.0	30.0
Minimum rated heat output net 40/30 °C	kW	10.5	10.5
Minimum rated heat output net 50/30 °C	kW	10.5	10.5
Minimum rated heat output net 80/60 °C	kW	9.4	9.4
Minimum rated heat inpout net	kW	9.8	9.8
Maximum flow temperature (nominal)	°C	90	90
Maximum permissible operating pressure	bar	3.0	3.0
Flue
Flue gas temperature 80/60 °C, rated/min. load	°C	83/58	86/58
Flue gas temperature 40/30 °C, rated/min. load	°C	65/35	66/35
CO2 level at max. rated heat output	%	9.7	9.7
CO2 level at min. rated heat output (	%	9.1	9.1
NOx class		5	5
Condensate
Maximum condensate rate	l/h	2.7	3.7
pH value, approx.		4.8	4.8
Electrical
Electrical power supply voltage	a.c. V	230	230
Frequency	Hz	50	50
Maximum power consumption - running	W	170	175

Worcester Bosch Greenstar Classic CDI
